LI-ION BATTERY TESTER – NEWARE, CHINA

Since 1998, Neware has been committed to providing world-class battery testing instrument with large power output and high accuracy. We adopt SAP as our ERP system and comply with ISO9001:2008 standard.
Neware chooses superior providers and supplies reliable and flexible testing instruments for more than 16,000 clients ranging from battery factories to R&D institutes all around the world.
Following are part of our awards and certificates.

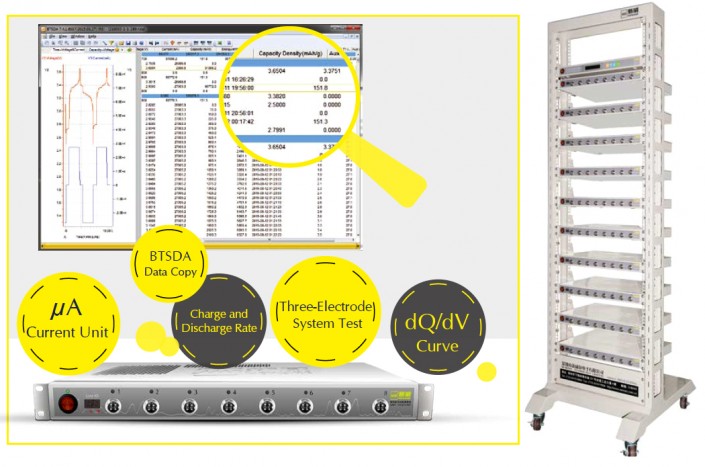

BTS 3000n Basic Type:

  • BTS3000 is one of the most popular battery testers from Neware, it has been in this market for more than 9 years.
  • For many small institutes, COM port BTS3000 is still a very good choice, BTS3000 is a time-proven product, it’s based on COM port communication, plug-and-play makes it very easy to use.

The whole new BTS3000n comes with following features:

  • 0.05%FS accuracy
  • Ethernet communication
  • Low PC dependence
  • Offline mode
  • Brand new bundled software
  • Range of 5V/6A

10 sets of BTS3000n on a shelf, with a middle machine, which makes BTS3000 can work without a PC for a while, and makes the communication of BTS3000 from COM port to Ethernet, the later one is obviously more popular, effective and steady.

BTS4000 – Sophisticated Type:

  • BTS4000 is based on Neware 4th-generation testing system, and was introduced into the market in 2008. It’s the upgrade version of the most popular battery test equipment series of BTS3000.BTS4000 is now widely used by research institutes, colleges and universities and EV battery manufacturers all around our country.
  • BTS4000 applies all the applications of BTS3000, plus EV battery pulse test, HPPC test and DCIR (direct current internal resistance) test.
  • Comparing with BTS3000, BTS4000 greatly improved the hardware response time, data acquisition frequency and result accuracy.
  • BTS4000 can be configured with multi-current range channels, which have a current control range of 0A to 3000A. These multi-current range channels can be configured for voltage ranges of 0V to 110V. The accuracy for current and voltage on these channels is ± 0.05% FS.
  • The highest power of BTS4000 can be up to: 5V3000A or 60V500A or 110V180A
  • Typical high power model of BTS4000 could be: 60V20A-4CH, 60V40A-2CH, 60V60A-2CH, 60V100A-4CH, 60V200A-1CH, 60V300A-1CH, 60V500-1CH, 110V100A-1CH, 110V180A-1CH.

BTS 4000 entered into market in the year of 2008. Now it is one of the most successful and most popular battery testing system in China. Thousands of battery manufacturers, battery research institutes and laboratories use it as their primary testing partner for their various testing activities.

Applications:

  • DCIR / Pulse Test / HPPC;
  • Rate, Static capacity, cycle life and etc.

Feature

  • Resolution： AD: 16bit; DA: 16bit;
  • Accuracy： 0.05% FS;
  • Response Time： ≤10ms (Current in the range 10%~90% FS);
  • Max. Output Power： 21kVA;
  • Data Acquisition Frequency： 10Hz/100Hz Optional;
  • Minimum Pulse Width： 500ms.

*For testers power range ≤ 30VA, the accuracy is 0.05%FS
For testers power range ＞ 30VA, the accuracy is 0.1%FS

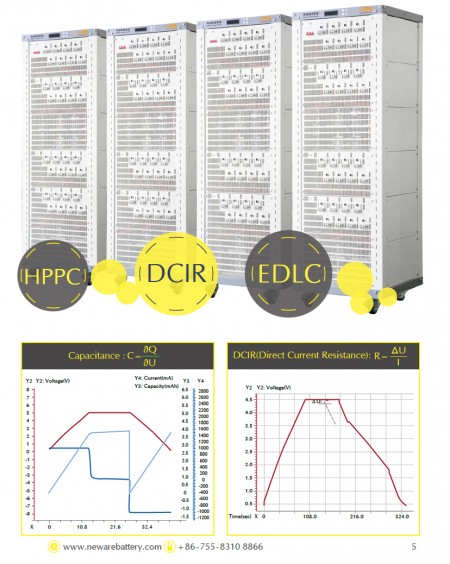

Due to the rapid data acquisition frequency, BTS 4000 could also be applied for super capacitor or EDLC (Electronic Double Layer Capacitor) tests. Through our advanced software, the capacitance, DCIR(Direct Current Internal Resistance) and LC(Leakage Current) could be easily calculated.

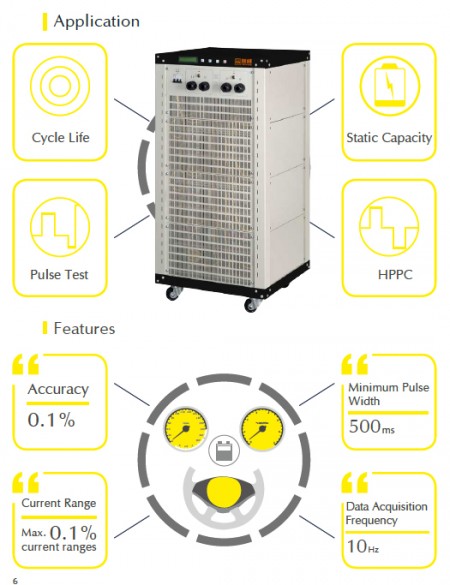

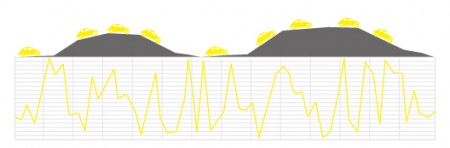

BTS 8000 (Driving Cycle Simulation)

Applications

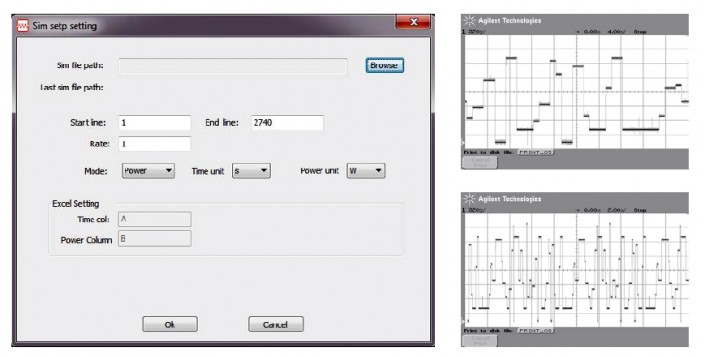

  • Driving Cycle Simulation;
  • Pulse Test / HPPC;
  • Rate, Static capacity, cycle life and etc.

Feature

  • Resolution： AD: 16bit; DA: 16bit;
  • Accuracy： 0.1% FS;
  • Response Time： ≤20ms (Current in the range 10%~90% FS);
  • Max. Output Power： 21kVA;
  • Data Acquisition Frequency： 10Hz;
  • Current Ranges： Max. 4 current ranges;
  • Minimum Pulse Width： 500ms.

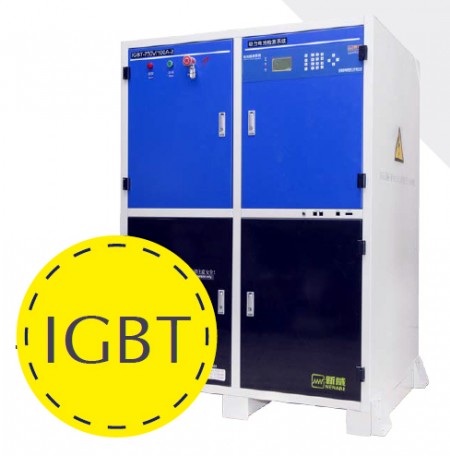

IGBT 7000 (Electric Vehicle Testing System)

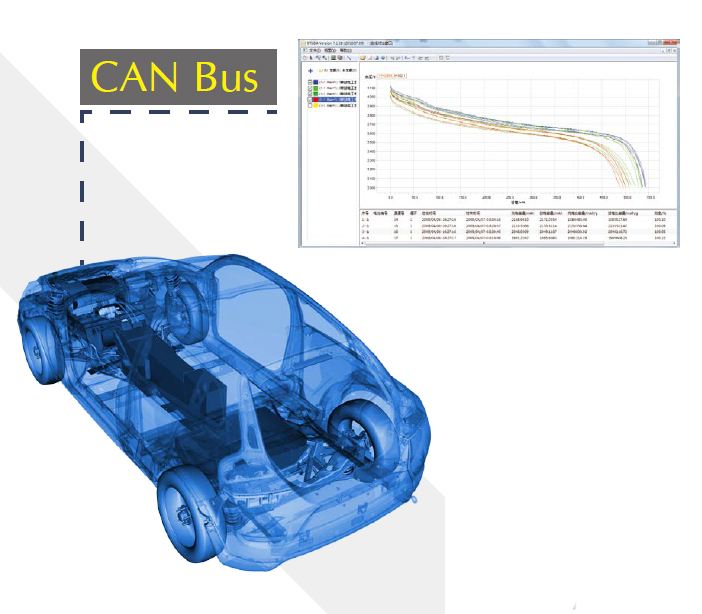

Characterized with IGBT, reversible AC/ DC converter and CAN supported, our EVTS 7000 brings you higher energy efficiency, smaller space and much convenient to utilize the existing gauge integrated in BMS/BMU.

Applications

  • DCIR / Pulse Test / HPPC;
  • Rate, Static capacity, cycle life and etc.

Feature

  • Resolution： AD: 16bit; DA: 16bit;
  • Accuracy： 0.1% FS;
  • Response Time： ≤10ms (Current in the range 10%~90% FS);
  • Max. Output Power： 21kVA;
  • Data Acquisition Frequency： 10Hz;
  • Channels Parallel: Up to 4 channels;
  • Minimum Pulse Width： 500ms.

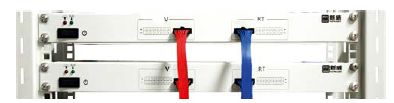

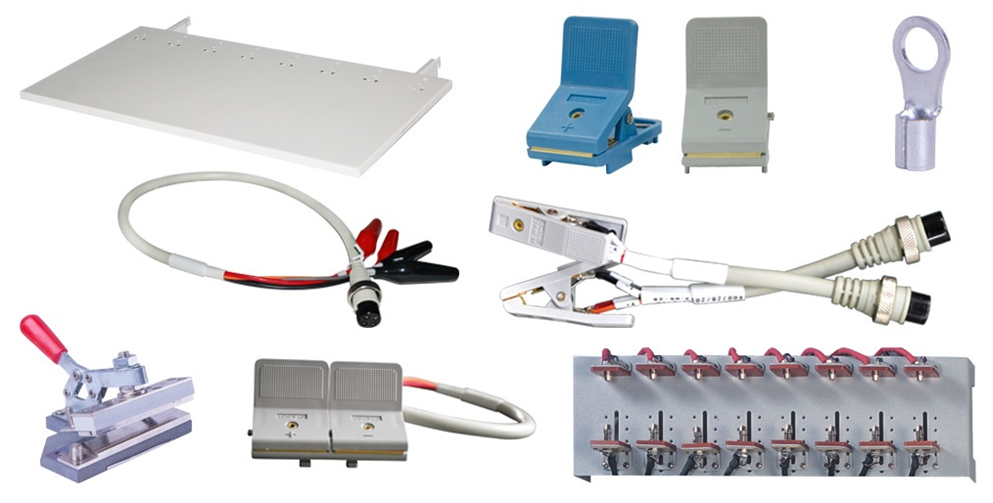

For some battery packs without BMS, our auxiliary voltage and temperature sensors will help you to detect the voltage and temperature of every single cell in battery packs.
