OTA Solution (On the Air) / Bluetest Sweden

bluelogo

OTA Solution (On the Air) / Bluetest Sweden

ota1

Reverberation Test Systems

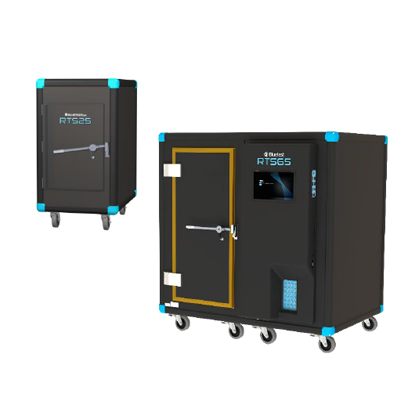

RTS25
– Optimized for WLAN and Bluetooth

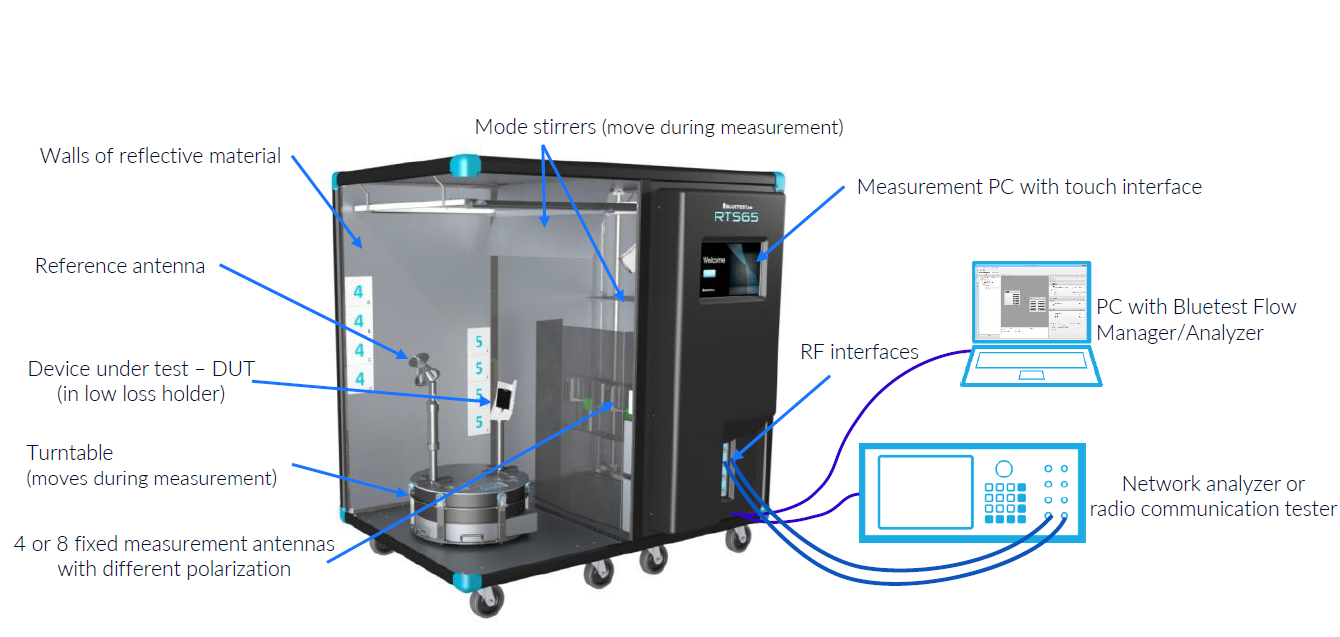

RTS65
– 650 MHz-12 GHz

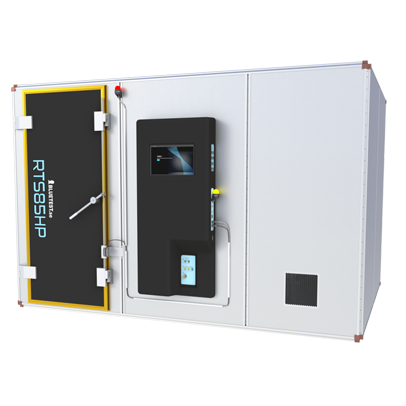

RTS85HP
– 450 MHz-67 GHz
– Designed for high RF power base stations
RTS95
– 400 MHz-12 GHz
– “Walk-in chamber”
RTS105
– 400 MHz-12 GHz
– For very large lot devices

Flow software

Measurement configuration
Measurement control & execution
Measurement analysis

Sustainability

The Bluetest Reverberation Test Systems provide:

Reduced footprint = reduced office space
Smaller chamber = less natural resources required
Low power consumption and fast measurement time = reduced energy consumption per measurement
System upgrades/long system life = less natural resources required

ota 2

Chamber Comparison – Size

	RTS25	RTS65	RTS85	RTS85HP	RTS95	RTS105
Target DUT	S device (WLAN/BT)	S/M device	S/M/L device	Base station /RRU	S/M/L/XL device	L/XL devices
Outer dimensions incl front rack (wxdxh,m)	0.8 X 1.39 X 1.47	1.95 X 1.44 X 2.0	3.52 X 2.69 X 2.31	3.52 X 2.69 X 2.31	4.24 X 3.51 X 2.61	5.46 X 4.73 X 2.61 (prel)
Footprint (m²) (chamber only)	1.0	2.5	8.94	8.94	14.2
Inside volume (m³)	1.0	4.0	19.4	19.4	34.4
Weight (approx.) (kg)	240	700	1500	1550	1750
Door opening (m)	0.52 X 0.8	0.67 X 1.47	0.9 X 2.1	0.9 X 2.1	0.9/1.4 X 2.1	1.4 X 2.1
Turntable	0.6m/12kg	0.6m/20kg	0.6m/20kg or 1.2m/150kg	1.2m/150kg	1.2m/150kg or 1.5m/200kg/500kg	1.5m/200kg or 2.5m/500kg

Chamber Comparison – Measurements

	RTS25	RTS65	RTS85	RTS85HP	RTS95	RTS105
Target DUT	S device (WLAN/BT)	S/M device	S/M/L device	Base station /RRU	S/M/L/XL device	L/XL devices
Frequency	2.4-2.5G, 5.0-7.125G	650M-12G	450M-12G	450M-12.75G	400M-12G	400M-12G
Measurement ports (MIMO)	4-8	1-16	1-16	1	1-16	1-16
mmWave frequency	N/A	6-50 GHz	6-43.5 GHz	6-43/67 GHz	TBA	N/A
mmWave ports	N/A	2	2	1	TBA	N/A
Live person testing	No	No	No	No	Yes	Yes
Max device power	4W/36dBm	4W/36dBm	4W/36dBm	>200W/53dBm	4W/36dBm	4W/36dBm

Passive measurements	Active (standard) measurements	Special measurements
Only antenna measured Antenna efficiency Diversity & MIMO gain	Measures antenna with receiver/transmitter TRP – Total Radiated Power TIS – Total Isotropic Sensitivity TPUT — Data throughput on MAC or IP layer EIRP & EIS – Directive power & sensitivity Spurious emission	Measurements specified by customer or Bluetest Call setup/call drop Handover Interference/De-sense Voice quality Etc
